What is BERA Waterfix®?

BERA Waterfix® is a modular lightweight, ready to use, cellular water storage block, using injection moulded recycled material, which is charged and discharged by a distribution network for optimized flow and a 95% void rate. BERA Waterfix® comes complete with a strong Geotextile.

BERA Waterfix® is part of BERA Ecosystems and manufactured in Czech Republic. The modular system provides a versatile and sustainable drainage system preserving rainwater and reducing the risk of flooding of lawns, drives and landscapes.

Waterfix Roof are modules to delay the run-off of rainwater from flat roofs as the basis of green-blue roofs.

Applications:

  • Rainwater Infiltration
  • Rainwater Buffering
  • Rainwater Recycling
  • Rainwater delayed run-off from roofs​

Features and benefits of Waterfix® by BERA Ecosystems:

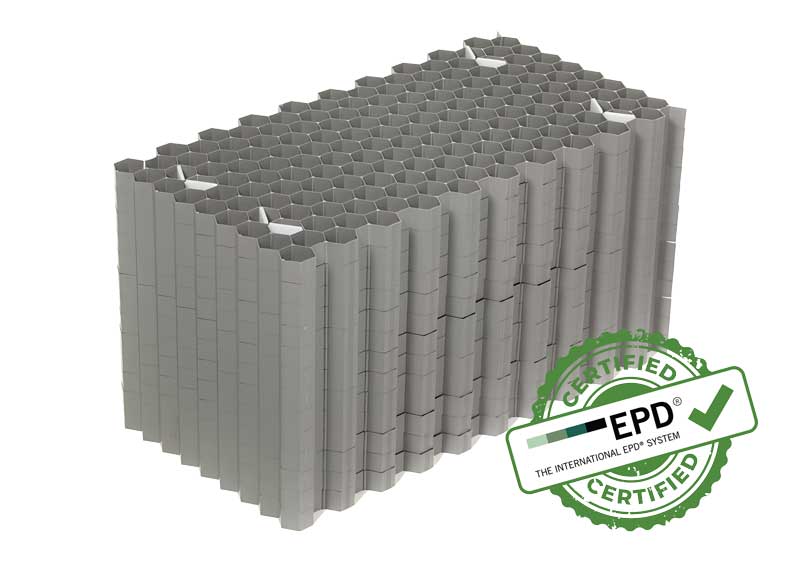

  • Versatile modular system, honeycomb structure in 3 sizes

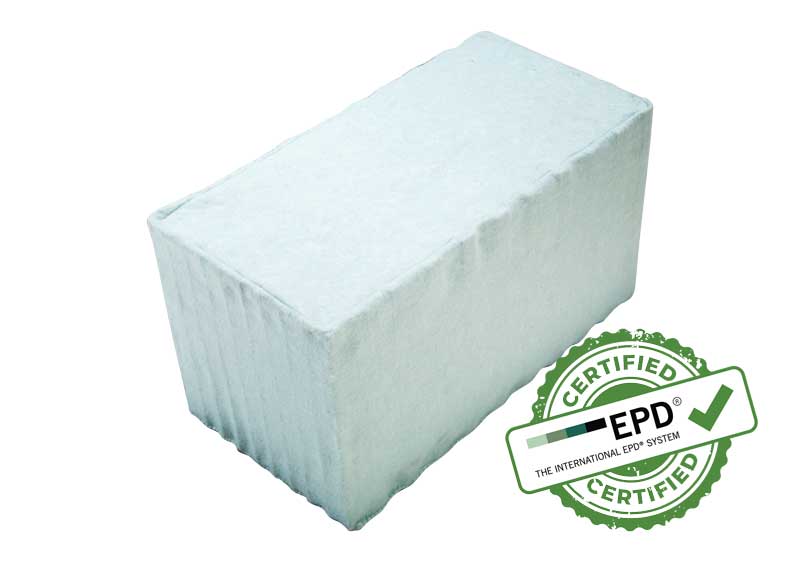

  • Complete with geo-textile wrapping per module
  • High compressive strength for location under roads and car parks
  • Easy installation
  • High void rate of 95%
  • Simple pipe network construction reducing overall installation cost
  • Highly resistant to chemical agents
  • Reducing risk of flooding and providing a source of water during dry periods for lawn and landscapes.
TECHNICAL SPECIFICATIONS 1)
GENERAL
Material honeycomb Recycled Polypropylene
Manufacturing technique Injection moulding
Manufacturing standards ISO9001
Colour Grey
Cell structure Honeycomb, 42 mm diameter
Material geo-textile Polyester
Weight geo-textile 68 g/m²
Chemical resistance Good
PHYSICAL DATA
Model WF120 WF700
Module dimension (mm) Length 766 1176
Module dimension (mm) Width 392 766
Module dimension (mm) Height 412 793
Average weight (kg/m² ) 7,5 kg 41,5 kg
Storage volume (liter) 124 l 714 l
APPLICATION / ROADS & GREENS
Backfill minimum (m) 0.5
Backfill maximum (m) 1.5
*) All data are subject to change without prior notice by the manufacturer
