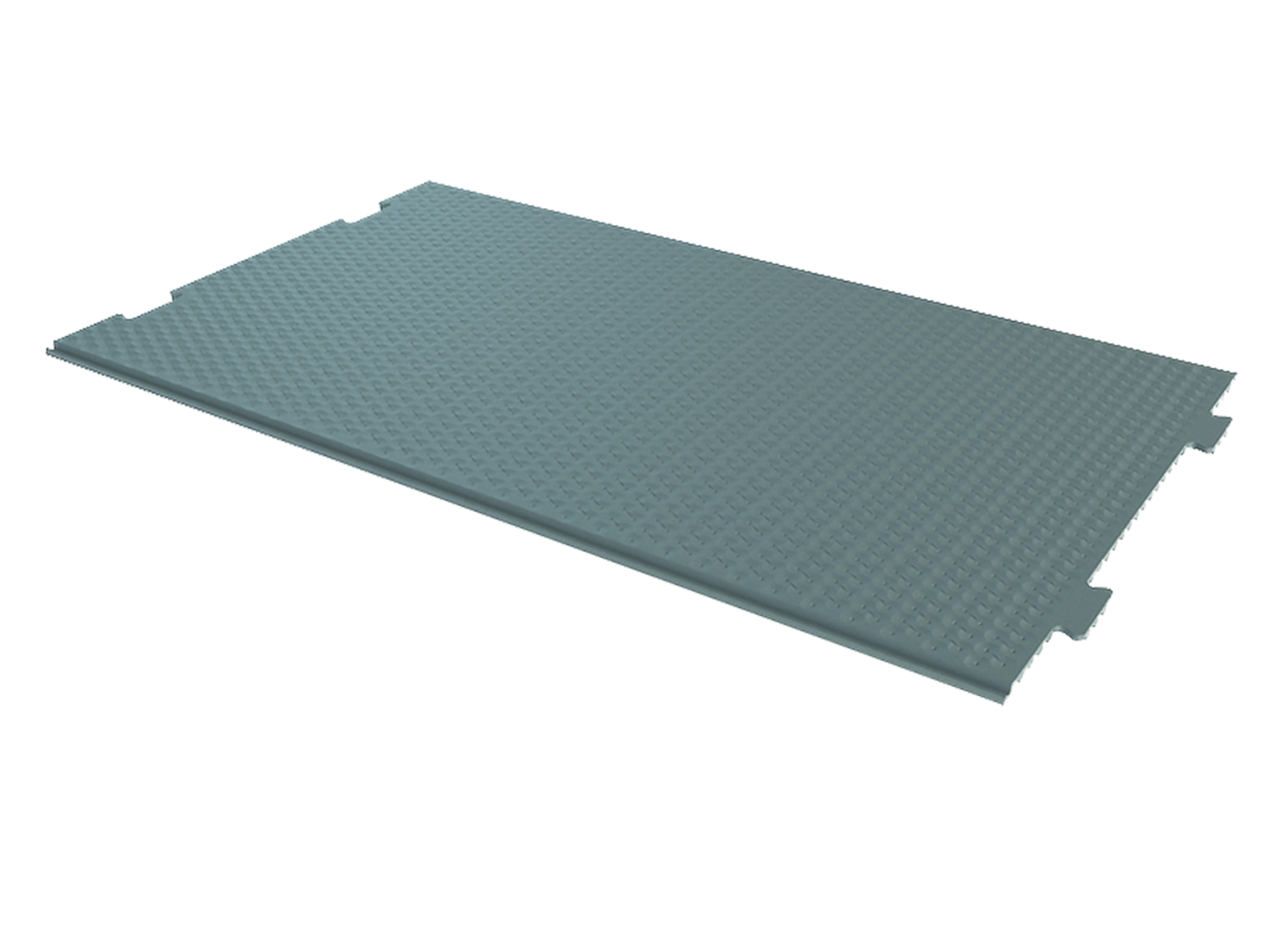

What is BERA® Flex Base?

For all playground and sports fields equipped with artificial grass you can now use our ultra-drainable lightweight shock absorbing BERA® Flex Base sheets. Made from durable and 100% recyclable expanded polypropylene, you can make any playground safe and dry. Installation is easy and efficient using large sheets of more than 2.1 m2 each. Installed directly on hard, non-permeable surfaces or in sloped conditions, the H.I.C. value is specified to be 1.6 m in accordance with latest EN1177:2018. This includes a sloped concrete base.

Advantages:

  • Play areas in gardens or public spaces and sports fields
  • High Gmax value preventing fractures
  • Very high drainage capacity horizontally & vertically
  • Lightweight, large size panels
  • Excellent thermal protection
  • Safe material vs. other solutions

Applications:

  • Play or sports in gardens
  • Subbase for artificial grass
  • Roof gardens

Keeping your playground safe and dry!!

TECHNICAL SPECIFICATIONS
Product BERA® Flex Base
Colour Black
Material Polypropylene, 100% recyclable
Dimension 1.95 x 1.12 m (2.18 m2)
Dimension installed 1.92 x 1.10 m (2.11 m2)
Thickness 23 mm
Weight 2 kg / sheet

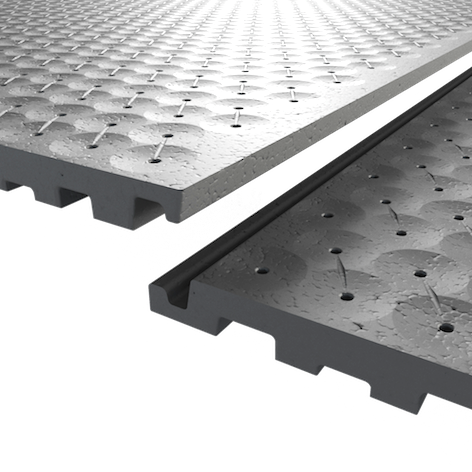

Interlocking included, puzzle & groove
Packing 64 sheets / pallet (135 m2)
Pallet details 2.0 x 1.13 x 1.31 m (150 kg)
Tensile strength 1200 kPa (EN 12230)
Thermal expansion per 1 ºC 0.11 mm/m
Chemical resistant yes
Toxicity none
Water drainability (vertical) 66000 mm/h (EN 12616)
Horizontal drainage by sloped installation 1 – 3%
Water storage in channels 5 l/m2
UV and frost Protected
Production safety REACH
Production standard ISO9001 – IATF16949
Ecology OEKO-TEX®

Safety data for 1 sheet + artificial grass 24 mm + 25 kg/m2 sand infill: max. 1,6 meter
H.I.C.                              1.6 (EN 1177:2018)
Gmax                              1.6
Safety data for 2 sheets + artificial grass 24 mm + 25 kg/m2 sand infill: max. 2,4 meter
H.I.C.                              2.4 (EN 1177:2018)
Gmax                              3.4
