What is BERA Gravel Fix® Pro?

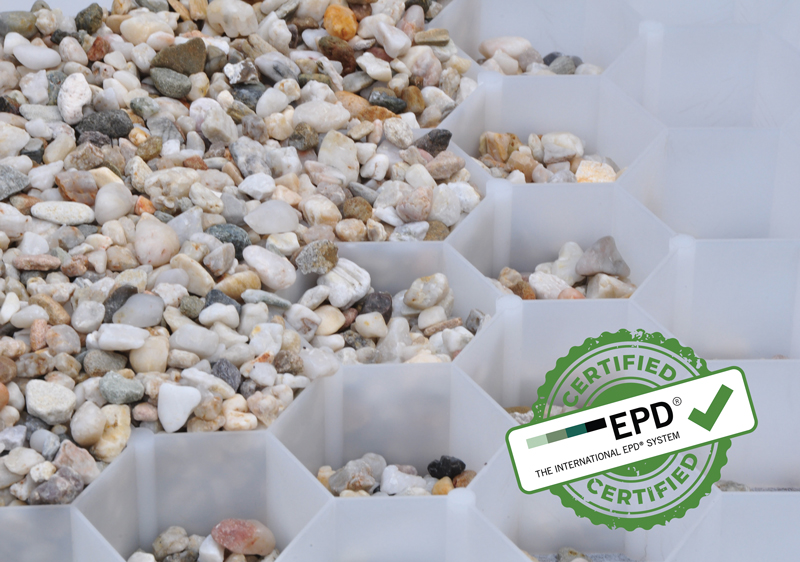

BERA Gravel Fix® Pro is an advanced recyclable stabilization system for gravel, shells, mulch and sand. With its hexagonal honeycomb-like structure of high quality Polypropylene cells, BERA Gravel Fix® Pro is designed to provide a strong and stable sub-base for the professional application of gravel on paths, driveways, car parks
and roofs. Installed by professional contractors it will facilitate a strong and porous surface for residential and urban projects.
Applications:
- Landscaping of urban areas
- Residential villa gardens and terraces
- Parking and gravel driveways
- Service access routes
Features and benefits of BERA Gravel Fix® Pro:
- Easy to install and stable gravel surface in fast and economic way
- Three sizes, Pro, Pro XL (book-fold) and Pro XXL from 0.9 – 2.7 m2
- For pedestrian and vehicle use, even trucks
- Easy mobility for all including those wearing high-heels or with bicycles, motorbike or wheelchair
- Terrace furniture, ladders – stable and no sinking in
- Fully porous, so dry and ensuring infiltration of rainwater immediately
- DuPont™ Typar® geotextile fitted for maximum porosity and weed growth reduction
BERA Gravel Fix® Pro is EPD certified.
| GENERAL | ||||
|---|---|---|---|---|
| Material | 100% recycled or pure polypropylene, 100% recyclable | |||
| Manufacturing technique | High Precision Green Injection Moulding | |||
| Manufacturing standards | ISO9001, 16949 Lloyds, REACH | |||
| Manufacturing location | European Union | |||
| Colour | White, grey, black or RAL | |||
| Cell structure | Hexagonal | |||
| Membrane | DuPont™ Typar® – 68 g/m² | |||
| Drainability EN ISO 11058 | 180 liter/(m².s) | |||
| UV and frost | UV and frost resistant | |||
| PHYSICAL DATA | ||||
| Model | Pro | Pro XL | Pro XXL | |
| Dimensions L x W x H (mm) | 1176 x 764 x 32 | 1176 x 764 x 32 (folded) 1528 x 1176 x 32 (installed) |
2292 x 1176 x 32 | |
| Installed surface (m²) | 0.9 | 1.8 | 2.7 | |
| Cell size (mm) | 42 | 42 | 42 | |
| Wall tickness, tapered (mm) | 0.8–1.4 mm | 0.8–1.4 mm | 0.8–1.4 mm | |
| Weight (kg) | 1.4 kg | 2.8 kg | 4.2 kg | |
| Gravel/split volume/weight | 50 l/m² = 75 kg/m²- size between 3 and 16 mm | 50 l/m² = 75 kg/m²- size between 3 and 16 mm | 50 l/m² = 75 kg/m²- size between 3 and 16 mm | |
| Vertical strength, empty (T/m²) | 120 resp. 95 (white resp. grey/black) | 120 resp. 95 (white resp. grey/black) | 120 resp. 95 (white resp. grey/black) | |
| Vertical strength, installed (T/m²) | > 450 depending on gravel/split | > 450 depending on gravel/split | > 450 depending on gravel/split | |
| *) All data is subject to change without prior notice by the manufacturer. • BERA Gravel Fix® Pro is frequently used on light slopes including driveways. Specific requirements on the application depend on the circumstances on site. Please contact the manufacturer or the dealer for further advise. • BERA Gravel Fix® Pro in various models and colours, are EPD certified. |
||||
Environmental and Engineering Excellence
BERA Gravel Fix® Pro is manufactured in the European Union under stringent Quality and Environmental Control standards, including REACH (EC 1907/2006). The use of recycled raw materials and well developed infrastructure to minimize our delivery carbon footprint, underline our corporate vision in providing environmentally sustainable solutions.
BERA Gravel Fix® Pro in various models and colours, are EPD certified.
BERA Gravel Fix® Pro, a sustainable product:
- Manufactured in Europe using renewable energy sources
- Fully recyclable after end of life-cycle
- Select 100% recycled raw materials at no extra cost
- Safety according REACH (EC1907/2006)
- UV and frost resistant
- No glue, only thermally welded connections
- Social awareness policy
